208HP

NEW-T-REX_RR_ABS

SUSPENSION-New-T-REX-RR_2023

1098LBS

COLOR OPTIONS

The 2023 T-REX RR has more personalization options than ever!
Body, Chassis, Bezels, Wheels, Calipers and more.

Banner-Side view colours 2023

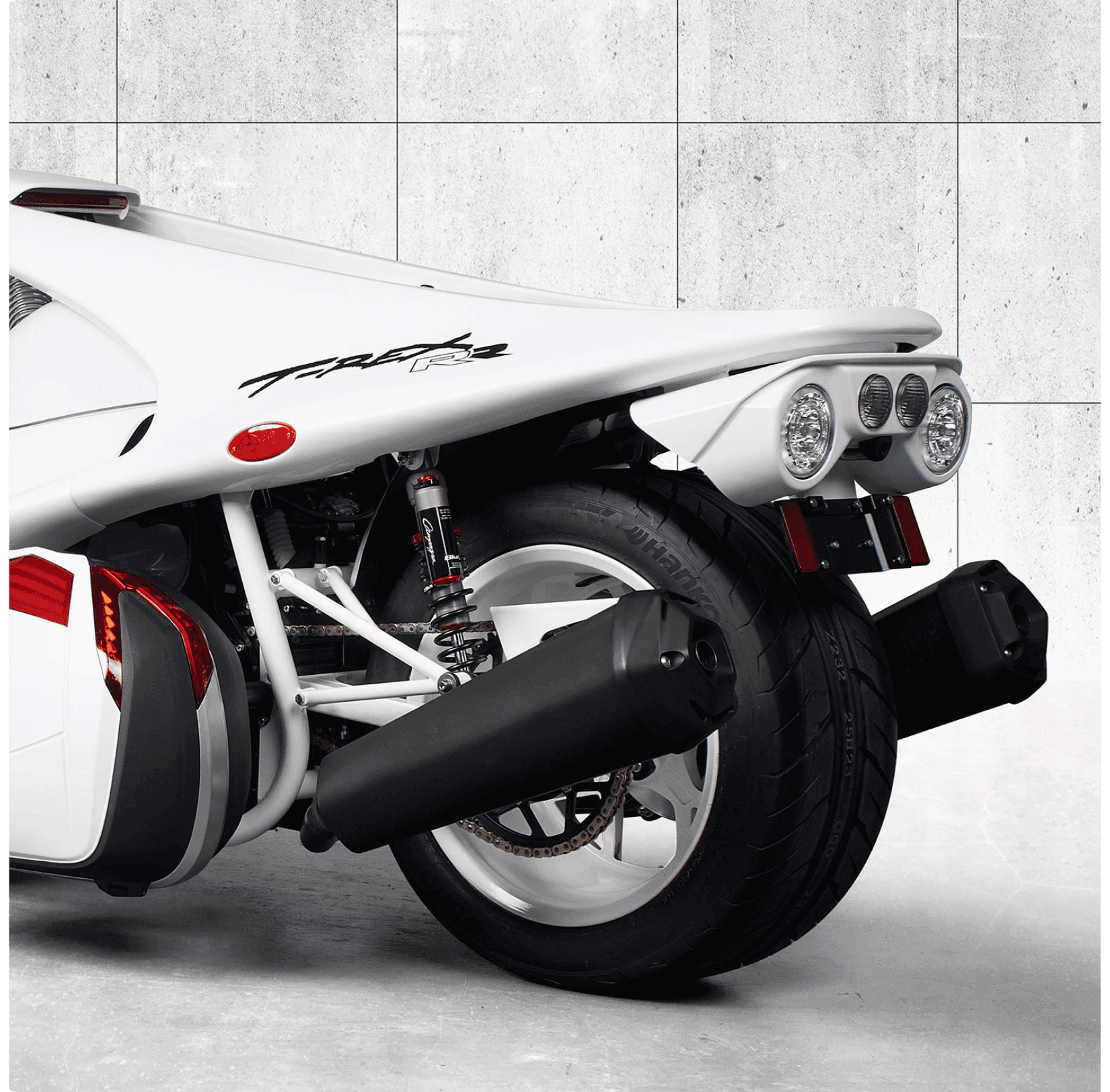

Arctic_White

Arctic White

Deep-Black

Deep Black

T-REX-RR_2023_Acid_Green

Acid Green

T-REX-RR_2023_Azure_Purple

Azure Purple

T-REX-RR_2023_Rosso_Mugello

Rosso Mugello

T-REX-RR_2023_Chalk_Grey

Chalk

T-REX-RR_2023_Gemini_Blue

Gemini Blue

T-REX-RR_2023_GT_Silver

GT Silver

T-REX-RR_2023_Gulf_Orange

Gulf Orange

T-REX-RR_2023_custom_color

Custom Colors

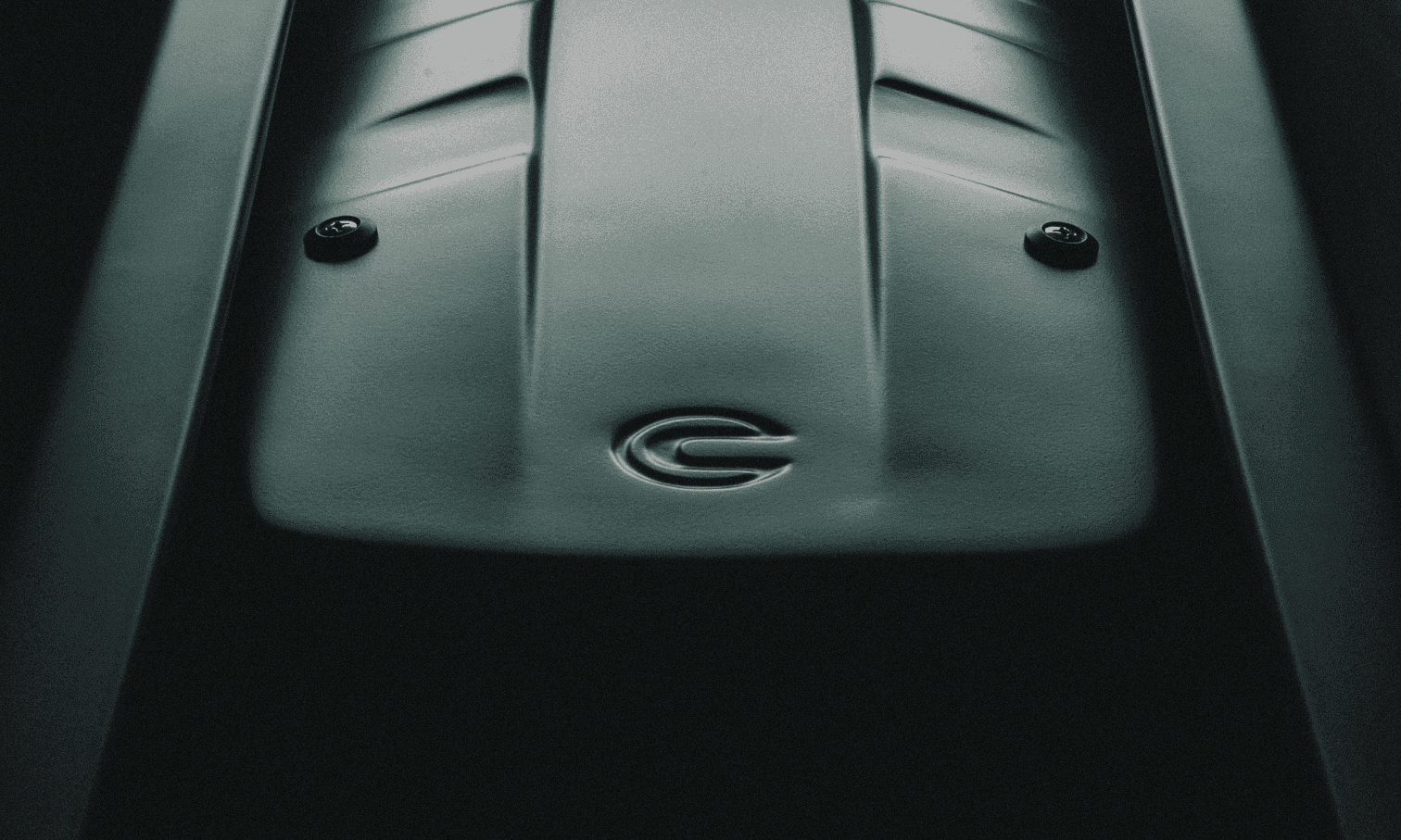

You can also choose the between Gloss finish or Flat finish.

T-REX-RR_2023_Rosso_Mugello

Gloss Finish

Rosso Mugello-Flat

Flat Finish

Banner Logos
C3-LOGOS-BK

Black

C3-LOGOS-SV

Silver

C3-LOGOS-BM

Matching Body Color

C3-LOGOS-CM

Matching Chassis Color

T-REX-RR_2023_custom_color

Custom Colors

Banner BEZELS
C3-BEZELS-NP

Not Painted

C3-BEZELS-CM

Matching Chassis Color

C3-BEZELS-BM

Matching Body Color

C3-BEZELS-BK

Gloss Black

T-REX-RR_2023_custom_color

Custom Colors

Banner SEAT BELTS
Seatbelt-C3-SB-BK

Black

Seatbelt-C3-SB-RD

Red

Seatbelt-C3-SB-OR

Orange

Seatbelt-C3-SB-YW

Yellow

Seatbelt-C3-SB-GR

Green

Banner Seats

Black

Bright Red

Banner Chassis
C3-CHASSIS-BK

Black

C3-CHASSIS-BG

Bright Green

C3-CHASSIS-BO

Bright Orange

C3-CHASSIS-NY

Neon Yellow

C3-CHASSIS-PP

Passion Pink

C3-CHASSIS-PA

Polished Aluminum

C3-CHASSIS-VR

Very Red

T-REX-RR_2023_custom_color

Custom Colors

Banner Wheels
C3-WHEELS-BZ

Bronze

C3-WHEELS-FB

Flat Black

C3-WHEELS-BK

Gloss Black

C3-WHEEL-BM

Matching Body Color

C3-WHEELS-CM

Matching Chassis Color

T-REX-RR_2023_custom_color

Custom Color

Banner CALIPERS
Caliper-C3-BC-RD

Red

Caliper-C3-BC-BK

Black

Caliper-C3-BC-YW

Yellow

TECHNICAL SPECIFICATIONS

Engine

• Powered by Kawasaki® 1441CC, inline 4 cylinder engine

• Watercooled, with two overhead cams, four valves per cylinder

• 208 Horsepower @ 10, 000 rpm

• 116.5 lb-ft of torque 7, 500 rpm

• Compression ratio 12.3:1

• CARB + EPA certified

Driveline

• Sequential six-speed transmission

• Integrated Campagna Motors designed reverse gear

• Chain driven rear wheel

Suspension

• Front dual wishbone, for easier adjustment and optimal cornering

• Custom fully adjustable coil-over shocks, for maximum traction

• Suspension components provide a smooth ride with unbelievable cornering ability and stability

Instrumentation

• Car type steering column and controls

• In-dash computer display with control switches to navigate through options and menus

• In-display menus for traction control, power delivery selection, info and more

• 12V integrated in dash accessory plug

• Backup camera with mirror integrated monitor

Safety

• Reinforced, frontal impact crash tested tubular chassis, with roll-cage

• 3-point safety belts in conformity with driver impact protection legislation

• Anti-lock Braking System (ABS)

• Dual LED beams (HI & LOW) headlights, for better vision at night

Cockpit

• Ergonomically designed Side-by-side seating configuration

• Quick release steering wheel mounted on steering column

• Comfortable marine grade waterproof seats

• Adjustable pedal assembly, for driver adaptability

Cargo

• Optional removable and lockable side-cases (2)

• 92 liters (24G) total capacity

• Color-matched to your vehicle

• Additional cargo space under the hood

• Open glove compartment recessed in dash

Warranty

• 1 year / 12 000 miles

OVERVIEW

Carbon_engine_cover-208hp

High Reving 4 Cylinder Engine

Powered by the in-line 4 cylinder 1441cc engine from KAWASAKI®, the T-REX RR has all the power to give you a race-ride type of experience. It delivers a low rpm torque for smooth or brisk accelerations. This makes the T-REX RR a beast on the road and on the track.

Rear-view_1098lbs

Lean and muscular

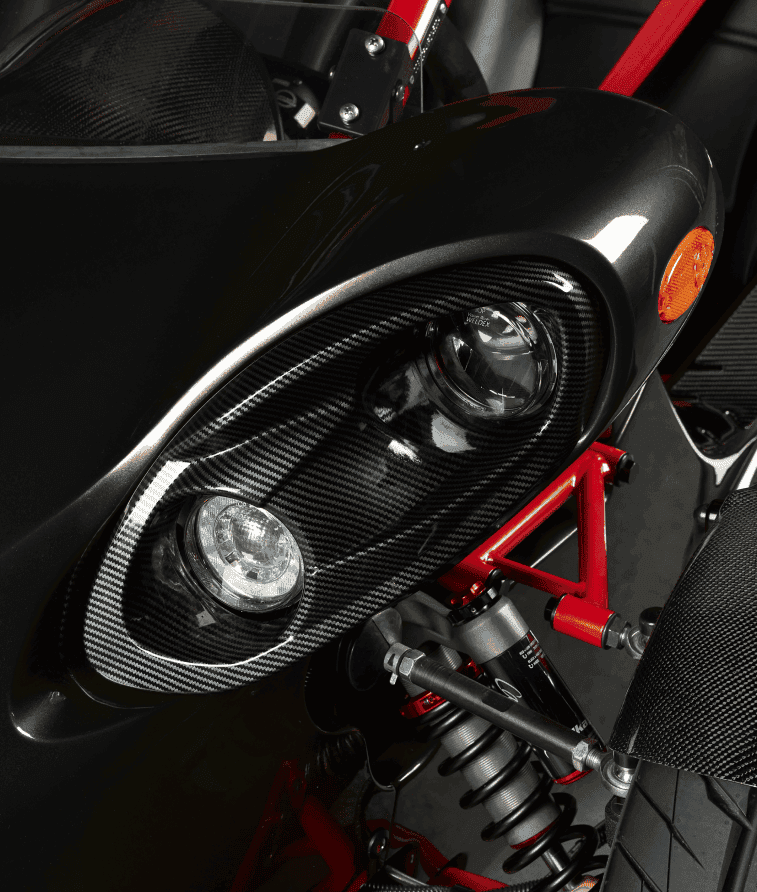

With its unique tension inspiring muscular lines, the T-REX RR has a look to emphasize its racing origin. LED head lights and tail lights give it a modern and incisive look. Made with lightness in mind, every component contributes to the incredibly low weight of the T-REX RR.

Traction Control

The 4 mode Traction Control on the T-REX RR gives you more flexibility under different driving conditions.

Constant road feedback, surgical handling and a responsive suspension make riding a T-REX RR a pure pleasure. Electronic command of the engine power delivery allows you even more control.

T-REX_RR_cockpit

Responsive, precise, direct
No compromise

Ergonomics and comfort are of primary concern in the T-REX RR design objectives. No compromise between everyday driving and Track mode. Improved driving position with more legroom and better throttle control.

FEATURES

Wheels & Tires

Front_tire +mag_wheel

The T-REX RR is fitted with lightweight aluminum alloy wheels and soft compound ultra-high performance tires.

Bronze color rim
V-shaped 10 spoke race design
Front rim size: 16 in x 7
Front tire size: 205/45ZR16W

Rear_tire +mag_wheel

The take-off of the T-REX RR is assured by one of the largest soft compound ultra-high performance tires we’ve used yet.

Bronze color rim
V-shaped 10 spoke race design
Rear rim size: 18 in x 10.5
Rear tire size: 295/40ZR18W

Suspension

SUSPENSION-New-T-REX-RR_2023

The 2023 T-REX RR comes standard with Campagna’s NEW RR5 fully adjustable suspension, with an external oil reservoir. This setup let’s you customize your suspension settings for all sorts of road/track conditions and different loads. You can maximize handling and chassis behavior under different conditions and according to your preferences.

Because of its chassis design, low center of gravity, suspension and weight distribution, the T-REX RR can take up to 1.3 G lateral acceleration in a curve.

Exhaust system

T-REX_RR_Exhaust_system

The T-REX mufflers produce an exotic sports car sound. The 4-into-2 manifold configuration with integrated catalytic converters ensure the greenest T-REX RR yet.

The exhaust system meets USA & Canada environmental standards for noise and pollution.

Steering Wheel

Steering_wheel

The T-REX RR comes standard with a racing D-shaped SparcoTM Alcantara steering wheel, allowing a non-slippery grip.

A short ratio rack and pinion offer instant reaction to steering input.

Electronics

T-REX_RR_Electronics

Complete control over all the features of the vehicle is provided through the digital instrument panel.

The special yellow RR tach emphasizes the racing spirit of the T-REX RR.

Circuit_imprime-Circuit_Board-Campagna_Motors

Campagna custom design and develop sophisticate electronic circuit modules specifically for the T-REX RR.

Driveline

Shifter-T-REX-RR

For optimal performance on the road or on the track, the 6-speed gearbox is activated through a fast shifting sequential pattern.

The chain driven final drive transmits maximum power to the rear wheel with virtually no loss, for an instant response to your right foot.

A reverse gear, custom designed by Campagna, allows you to backup safely on the engine power.

Safety

T-REX-RR-CHASSIS-3D

The tubular steel frame acts as a solid roll-cage and a rigid frame, to protect you and your passenger.

Standard with 3-point safety belts for on-road use, the T-REX RR chassis has mounting points ready to accept a 4-point race harness for your track days.

NEW-T-REX_RR_ABS

The 2023 T-REX RR, now equipped with an anti-lock braking system (ABS), will allow you to have more control when braking, bringing you confidence and safety.

ABS uses sensors at all three wheels to continuously monitor wheel speeds. If a wheel lockup has occurred, the ABS computer will modulate brake fluid pressure until wheel speed synchronizes. This safety system provides riders with reassurance that contributes to greater vehicle control in all conditions.

Power_TC_MODE

The T-REX RR comes with an electronic Traction Control system. This gives you the ability to adjust the behavior of the system on the fly, to your liking.

You can also choose from Normal Power delivery to Hi-Power delivery to fully experience the capabilities of the T-REX RR on a track.

OPTIONS

Carbon Fiber

Carbon_Fiber_2023

Available as an option, certain body parts are offered in carbon fiber for weight reduction and a modern style.

Crafted from ultra-lightweight carbon fiber and high-tech resin, the engineering and design of each part provide this unique combination of strength, lightness and efficiency.

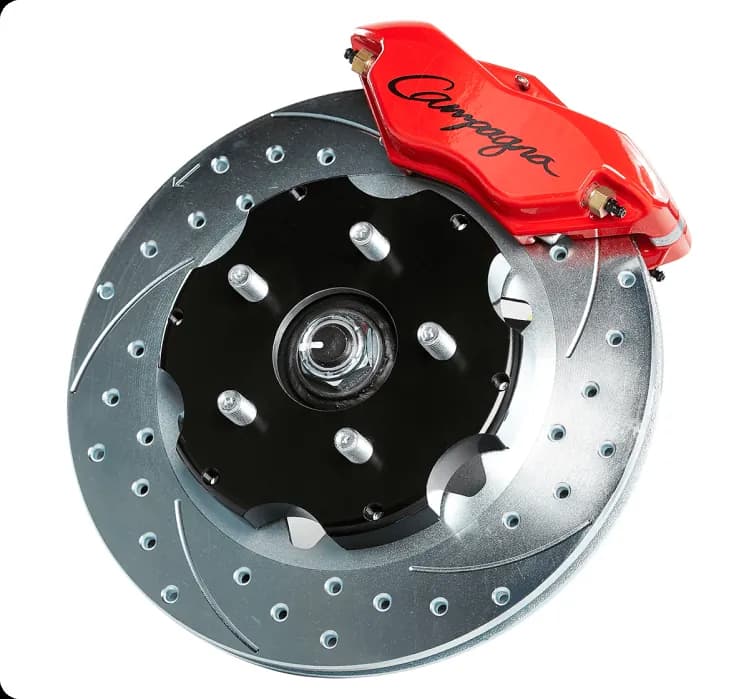

Performance Brakes

Disc&Caliper

The T-REX RR is available with performance braking power provided by its vented, slotted and cross-drilled disc-brakes on all wheels.

To maintain braking power under track condition, the T-REX RR uses rigid and braided stainless-steel brake lines.

Wilwood 4-piston calipers complete this performance brake package.

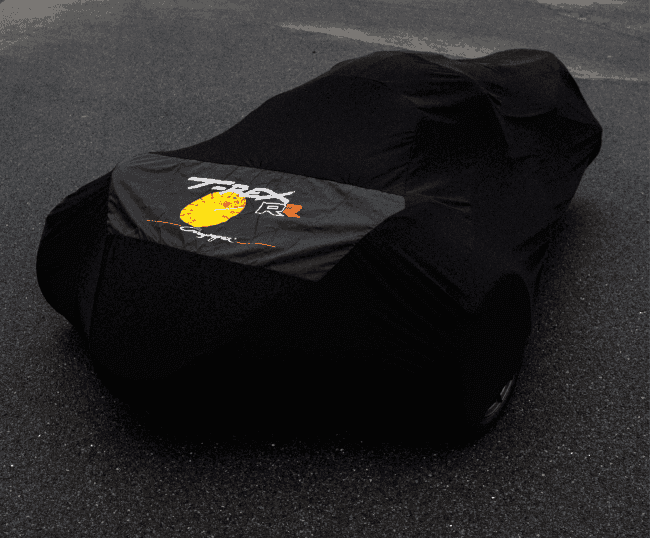

T-REX RR Indoor Soft Cover

Housse_T-REX-RR_intérieur

Made of smooth tension fabric material, it is compact, tight fit and ideal for indoor storage.

In deep black fabric with the colorful RR Red-Yellow Tach image and T-REX RR logo.

Upholstery

FIO021-RR

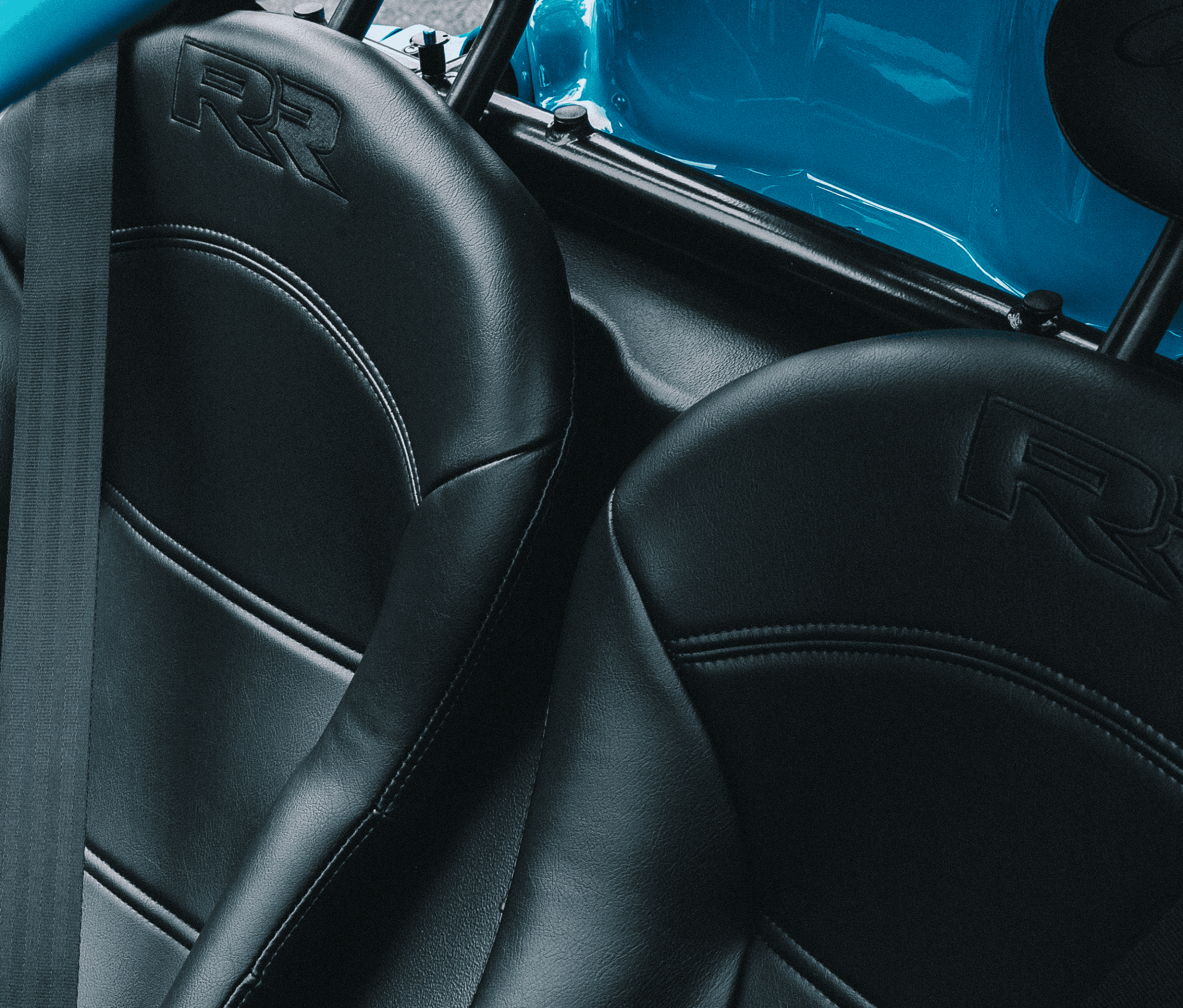

The T-REX RR comes standard with black vinyl fabric with a non-slippery surface finish for added stability in a curve. The RR emblem is proudly embroiled in the seat back.

Made with weather resistant and fire retardant material, the seats offer comfort and safety in any temperature.

Also available in bright-red material.

The hi-tech seat material has the following characteristics:

  • Easy to clean and scratch resistant
  • Ultraviolet stabilized pigment
  • Mildew and oil resistant
  • Fungal growth resistant
  • Meets the FMVSS 302 and California fire regulation (Bulletin 117, Sect. E) flammability requirements

Travel Package

The Travel Package includes options used to provide comfort and convenience for any road trip.

These items are also sold separately.

T-REX_RR_cases

Color-matching cases

The waterproof carrying cases provide secure storage and ample capacity to carry your travel gear. They lock in place on the T-REX and can be removed at the push of a button to carry around.

With a 92 liters (24G) total capacity, you can take the road for long trips.

T-REX_RR_Windshield

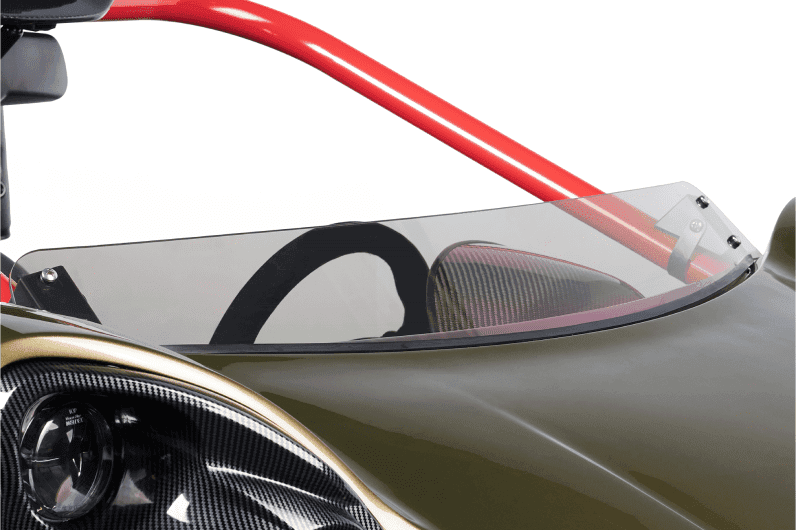

Smoked Wind deflector

The wind deflector redirects the air flow around the occupants and provides a more comfortable ride, even in the rain.

FIO005-RR

Passenger footrest

Fully adjustable, it provides adequate support for passengers of all sizes.

Protection Package

The Protection Package includes the necessary options to maintain the look and finish of your vehicle, ride after ride, year after year.

These items are also sold separately.

T-REX_RR_carbon_protection

Carbon Protection Kit

Made out of real carbon fiber material, domed with UV resistant clear resin, the Carbon Protection Kit helps protect the side panels.

Select one of the available colors for better customization.

MPX114-RD~3

Red & Carbon

MPX114-BL~2

Blue & Carbon

MPX114-OR~2

Orange & Carbon

Housse_T-REX-RR_extérieur

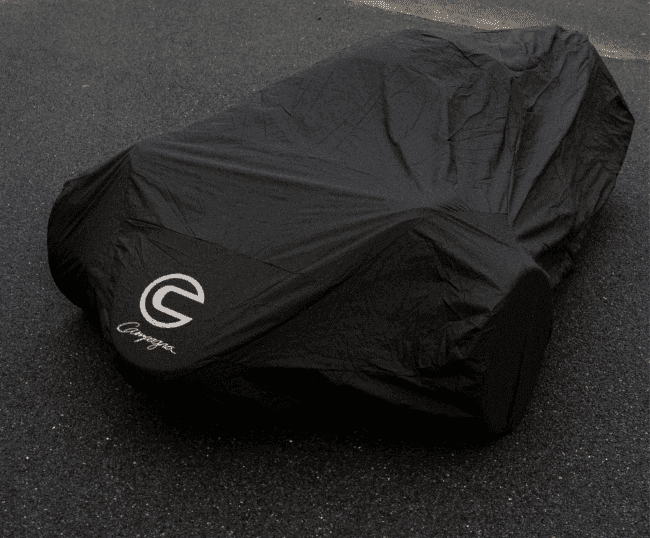

Outdoor Soft Cover

The Outdoor Soft Cover is designed to fit perfectly the shape of your T-REX. It will protect it from the elements.

Made from hi-tech synthetic material, the Outdoor Soft Cover is rainproof.

Available in black with silver logo.
